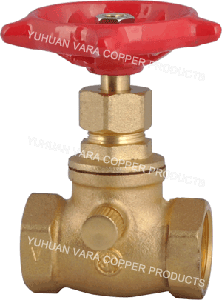

FEMALE x FEMALE STOP VALVE BRASS WITH DRAIN

Description


C x C weld brass stop valve with drain
Brass body cast
Maximum working pressure:125PSI (1/2 ~/4)
Temperature range: -20 F to 200 F (-10 to 95)
Packing gland and O-ring on stem is reliable seal mode
Brass surface and shot blasting
Solder ends comply with ANSI B16.18
Threaded ends comply with ANSI BI. 20.1
Designed for residential use with water, oil or air
Allows draining of the non-pressure side of the valve when closed

SPEC.



ITEM

SIZE

INN/MAS

701-11

1/2FIP×FIP

12/72

701-12

3/4FIP×FIP

12/72
