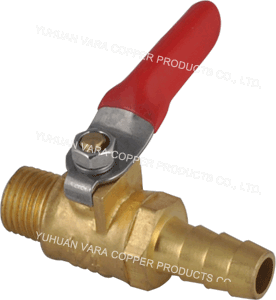

MPT x H BALL VALVE 1/2 TURN STANDARD PORT
| Back |
|
 |
|
|
Description
Mpt x H Ball valve 1/2 turu Standard Port
Forged brass body
Maximum working pressure: 125PSI
Temperature range: -20 F to 300 F (-28℃ to 151℃)
Double 〝O〞 ring seal
Threaded ends comply with ANSI BI. 20.1
Designed for residential use with water, oil or air
SPEC.
|
ITEM
|
SIZE
|
INN/MAS
|
|
115-01
|
1/4″M×1/4″H
|
50/400
|
|
115-02
|
1/4″M×5/16″H
|
50/400
|
|
115-03
|
1/4″M×3/8″H
|
50/400
|
|
115-04
|
1/4″M×1/2″H
|
50/400
|
|
115-05
|
3/8″M×1/4″H
|
50/400
|
|
115-06
|
3/8″M×5/16″H
|
50/400
|
|
115-07
|
3/8″M×3/8″H
|
50/400
|
|
115-08
|
1/8″M×3/16″H
|
50/400
|
|
115-09
|
1/4”M x 5/16”H Cehck Valve
|
50/400
|
|
115-10
|
1/8″M×1/4″H
|
50/400
|
|
115-11
|
1/4″M×5/16″H
|
50/400
|
|
115-12
|
1/4″M×3/8″H
|
50/400
|
|
