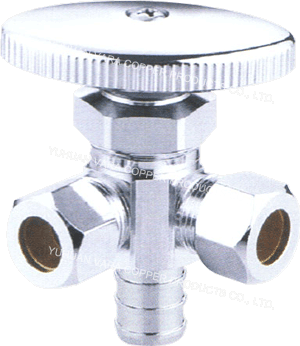

O.D. COMP. x PEX x O.D. COMP. ANGLE VALVE



Description

O.D. COMP.
x PEX x O.D. OR 7/16"slip joint angle valve
Forged brass body
Maximum working pressure: 125PSI
Temperature range: -20 F to 200 F (-10 to 95)
Packing gland and O-ring on stem is reliable seal mode
surface chrome plated
Solder ends comply with ANSI B16.18
Thread ends comply with ANSI BI. 20.1
Designed for residential use with water, oil or air

SPEC
.

ITEM

SIZE

INN/MAS

709-70

1/4"O.D.x1/2"Px1/4"O.D.

15/150

709-71 3/8"O.D.x1/2"Px3/8"O.D. 15/150
709-72 1/4"O.D.x1/2"Px3/8"O.D. 15/150
