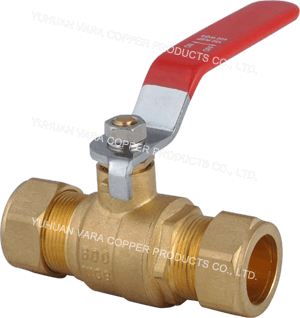

COMPRESSION CONNECTION O.D. x O.D. BALL VALVE FULL PORT

Description

Compression Connection O.D. x PEX ball valve with drain full port
Forged brass body
Maximum working pressure:400PSI (1/2” ~1” )
Temperature range: -20 F to 300 F (-28℃ to 151℃)
Packing gland and O-ring on stem is reliable seal mode
Brass surface and shot blasting
Solder ends comply with ANSI B16.18
Thread ends comply with ANSI BI. 20.1
Designed specifically for use in PEX piping system
PEX end designed to ASTM F-1807
Designed for residential use with water, oil or air

SPEC.

ITEM

SIZE

INN/MAS

831-04

1/2"

6/36

831-05

3/4"

6/36

831-06

1"

6/24
