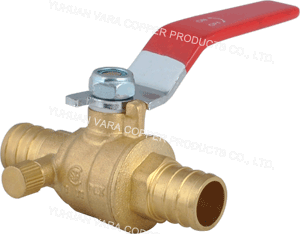

PEX x PEX PIPE PORT BALL VALVE WITH DRAIN

Description

PEX x PEX pipe port ball valve with drain
Forged brass body
Maximum working pressure: 400PSI
Temperature range: -20 F to 350 F (-28 to 176)
DoubleO ring and teflon stem seal
Brass surface and shot blasting
Designed specifically for use in PEX piping system
PEX end designed to ASTM F-1807
Applied only for water
Allows draining of the non-pressure side of the valve when closed

SPEC.

ITEM

SIZE

INN/MAS

804-14

1/2

10/120

804-15

3/4

10/80

804-16

1

6/48
