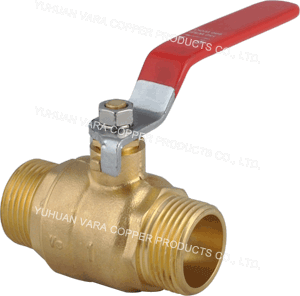

THREAD ENDS BALL VALVE FULL PORT
| Back |
|
 |
|
|
Description
Thread ends ball valve full port
Forged brass body
Maximum working pressure:600PSI (1/8″ ~2″)
Temperature range: -20 F to 300 F (-28℃ to 151℃)
Packing gland and O-ring on stem is reliable seal mode
Brass surface and shot blasting
Solder ends comply with ANSI B16.18
Thread ends comply with ANSI BI. 20.1
Designed for residential use with water, oil or air
SPEC.
|
ITEM
|
Size
|
INN/MAS
|
ITEM
|
SIZE
|
INN/MAS
|
|
801-61
|
1/8″
|
20/200
|
801-66
|
1″
|
5/50
|
|
801-62
|
1/4″
|
20/200
|
801-67
|
1-1/4″
|
5/30
|
|
801-63
|
3/8″
|
10/150
|
801-68
|
1-1/2″
|
4/20
|
|
801-64
|
1/2″
|
10/100
|
801-69 |
2″ |
4/16 |
|
|
|
801-65
|
3/4″
|
10/80
|
|
