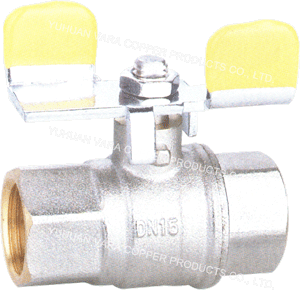

THREAD ENDS BALL VALVE FULL PORT - T HANDLE
Back |
|
 |
|
|
Description
Thread ends ball valve full port - T Handle
Forged brass body
Maximum working pressure:600PSI (1/8” ~1” )
Temperature range: -20 F to 300 F (-28℃ to 151℃)
Packing gland and O-ring on stem is reliable seal mode Brass
surface and shot blasting Solder ends comply with ANSI B16.18
Thread ends comply with ANSI BI. 20.1
Designed for residential use with water, oil or air
SPEC.
ITEM |
SIZE |
INN/MAS |
801-21 |
1/8" |
20/200 |
801-22 |
1/4" |
20/200 |
801-23 |
3/8" |
10/150 |
801-24 |
1/2" |
10/100 |
801-25 |
3/4" |
10/80 |
801-26 |
1" |
5/50 |
